Hybrid Algorithms perform quantum state preparation and measurement. They determine the ground state eigenvector and eigen value of a Hermitian Operator.
The hybrid quantum algorithms are enumerated in the following list.
A delegate in C# is like a function object in C++. The delegate object can be passed to a code. Delegate encapsulates a reference to a method inside the object. The referenced method is executed during runtime. A Test FunctionObject is shown below.
public delegate void TestFunctionObject();using System;
using Microsoft.Quantum.Simulation.Core;
using Microsoft.Quantum.Simulation.Simulators;
namespace Hello
{
class Driver
{
public static void ParameterFunction()
{
Console.WriteLine("Invoked by Delegate");
}
static void Main(string[] args)
{
TestFunctionObject testFunction = new TestFunctionObject(ParameterFunction);
testFunction();
}
}
Run the following commands to execute the project in Visual Studio Code:
^F5 In the terminal, you can execute the build by running the command below.
dotnet run
The screenshot of the output is attached below:
Generics helps in the following ways to write code.
The code below shows a generic method with different type parameters such as int, char and double typed parameters.
Code Snippet : FunctionTemplates Example
public class FunctionTemplates
{
public void Show<TypeOfValue>(string message, TypeOfValue value)
{
Console.WriteLine("{0}:{1}", message, value);
}
} Code Snippet : FunctionTemplates Driver Example
using System;
using Microsoft.Quantum.Simulation.Core;
using Microsoft.Quantum.Simulation.Simulators;
namespace Hello
{
class Driver
{
static void Main(string[] args)
{
FunctionTemplates p = new FunctionTemplates();
p.Show<int>("Integer", 10);
p.Show<char>("Character", 'E');
p.Show<double>("Decimal", 231.78);
}
}Run the following commands to execute the project in Visual Studio Code:
^F5 In the terminal, you can execute the build by running the command below.
dotnet runThe screenshot of the output is attached below:
Parameterized types are specified in generic classes. Generics in C# is powerful feature which defines the type-safe data structures. They are similar to templates in C++. The parameters can be typed by using generics in methods and classes. The framing of data type is deferred till the class or the method is declared and instantiated & executed by client code. They reduce the overhead of following operations :
The code snippet below shows ParameterizedTypes Class which takes a generic type parameter ’T’.
public class ParameterizedTypes<T>
{
private T data;
public T value
{
get
{
return this.data;
}
set
{
this.data = value;
}
}
}The Driver class has Main method, in which ParameterizedTypes Class is instantiated as string and float. The constructor accepts the required type for ParameterizedTypes class.
using System;
using Microsoft.Quantum.Simulation.Core;
using Microsoft.Quantum.Simulation.Simulators;
namespace Hello
{
class Driver
{
static void Main(string[] args)
{
ParameterizedTypes<string> name = new ParameterizedTypes<string>();
name.value = "Parameterized Types";
ParameterizedTypes<float> version = new ParameterizedTypes<float>();
version.value = 7.0F;
Console.WriteLine(name.value);
Console.WriteLine(version.value);
}
}
}Run the following commands to execute the project in Visual Studio Code:
^F5 In the terminal, you can execute the build by running the command below.
dotnet runThe screenshot of the output is attached below:
In Q#, operation is a callable routine. The routine contains code to execute a quantum operation. The operation takes tuple value as input and the output is returned as a single value. The sample code is shown below for operation.
operation GetSum(x: Int, y: Int): Int { body { mutable z = 0; set z = x + y; return (z); }
Q# project and solution is created using the following commands.
dotnet new console -lang Q# --output Hello
Visual Studio Code is used to open the project. The project will have two files Driver.cs (C# driver) and Operations.qs (Q# ). The Operations.qs is renamed as Hello.qs.
The code snippet below shows the Hello.qs after adding the operation GetSum.
Code Snippet : GetSum Example
namespace Hello { open Microsoft.Quantum.Canon; open Microsoft.Quantum.Primitive; operation GetSum(x: Int, y: Int): Int { body { mutable z = 0; set z = x + y; return (z); } } } The Driver file will have the following code to execute GetSum function. using System; using Microsoft.Quantum.Simulation.Core; using Microsoft.Quantum.Simulation.Simulators; namespace Hello { class Driver { static void Main(string[] args) { using (var qsim = new QuantumSimulator()) { System.Console.WriteLine("Sum of 4 and 5 is"); var result = GetSum.Run(qsim,4,5).Result; System.Console.WriteLine(result); } } } }
Run the following commands to execute the project in Visual Studio Code:
^F5
In the terminal, you can execute the build by running the command below.
dotnet run

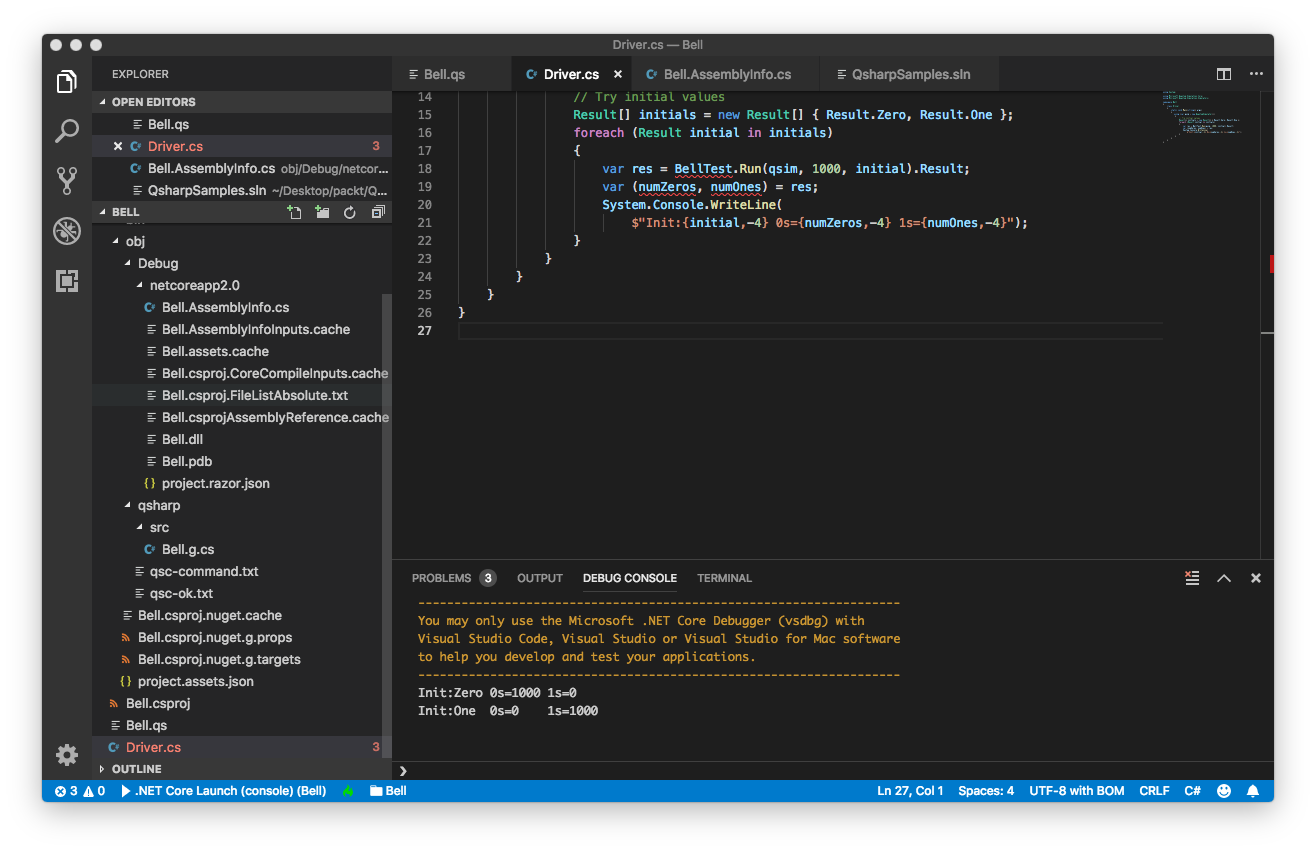

The screenshot of the output is attached below:
Quantum Entanglement is a superposition of two or more particles. This is a quantum state which has a special subset of all measurements of a particle. It is a correlated measurement outcome of two or more particles. Quantum entanglement happens when multiple particles generated together or closely interacted. The particle cannot be described independently and becomes part of a connected system. Measurement of one particle affects the other particle’s state.
Let us look at the implementation of deterministic entanglement.
The setup of the Microsoft Development Kit is discussed below.
Install Microsoft Development Kit from the link on Microsoft.com
The Driver source code will be used to invoke the State Test.
using System; using Microsoft.Quantum.Simulation.Core; using Microsoft.Quantum.Simulation.Simulators; namespace FirstQuantum { class Driver { static void Main(string[] args) { using (var qsim = new QuantumSimulator(randomNumberGeneratorSeed: 31)) { Result[] initials = new Result[] { Result.Zero, Result.One }; foreach (Result initial in initials) { var res = DeterministicTest.Run(qsim, 1000, initial).Result; var (numZeros, numOnes,agree) = res; System.Console.WriteLine( $"Init:{initial,-4} 0s={numZeros,-4} 1s={numOnes,-4} agree={agree,-4}"); } } } } }
The PerformXGate operation and operation DeterministicTest’s code is shown below.
namespace DeterministicTest { open Microsoft.Quantum.Canon; open Microsoft.Quantum.Primitive; operation PerformXGate (desired: Result, q1: Qubit) : Unit { let current = M(q1); if (desired != current) { X(q1); } }
operation DeterministicTest (count : Int, initial: Result) : (Int, Int) { mutable numOnes = 0; using (qubit = Qubit()) { for (test in 1..count) { PerformXGate (initial, qubit); H(qubit); let res = M (qubit); if (res == One) { set numOnes = numOnes + 1; } } Set(Zero, qubit); } return (count-numOnes, numOnes); } }
In the deterministic test, the number of times zero and one values come in the run of 1000 times are printed. Qubit is halfway between 0 and 1 as presented in the output below.
Init:Zero 0s=512 1s=488 agree=1000 Init:One 0s=503 1s=497 agree=1000
In this post, we build a program to show quantum superposition. Let us start with a quantum bit in a basis state |0>. Operations are executed on the qubit and the result is evaluated.
Superposition is a quantum mechanics principle that allows quantum interference. It is a wave property that can be represented in mathematical probability for. Sum of two waves with amplitude and phase is called a superposition. Two waves can be added and subtracted based on the phase value. Quantum interference occurs when two quantum wave functions are added. Superpositions occur when quantum wave functions with complex coefficients are added. To summarize, superposition is the possibility of an electron being at different positions at the same time or different directions in a spin.
Power of Quantum bit is in its quantum mechanical properties such as superposition and quantum entanglement. Quantum bit can be in both zero state and one state simultaneously. An increase in the number of quantum bits will also increase exponentially the number of possible entangled states. The quantum state can be one of the following:
The code sample below shows the Quantum.qs after adding the operation Set and SuperpositionStateTest.
Code Snippet : Quantum Q#Example
namespace Superposition
{
open Microsoft.Quantum.Canon;
open Microsoft.Quantum.Primitive;
operation Set (desired: Result, q1: Qubit) : Unit
{
let current = M(q1);
if (desired != current)
{
X(q1);
}
}
The set operation updates the qubit to the desired state of zero or one. The quantum bit is measured which collapses the state to either 0 or 1. If the desired is not equal to the current, X (NOT gate) flips it otherwise nothing is changed.
operation SuperpositionStateTest (count : Int, initial: Result) : (Int, Int)
{
mutable numOnes = 0;
using (qubit = Qubit())
{
for (test in 1..count)
{
Set (initial, qubit);
H(qubit);
let res = M (qubit);
if (res == One)
{
set numOnes = numOnes + 1;
}
}
Set(Zero, qubit);
}
return (count-numOnes, numOnes);
}
}
SuperpositionStateTest operation takes parameters count and initial. The operation returns two values as a tuple of type (Int, Int). This operation loops the count number of times and measures one and zero states. The measurement happens after invoking the set operation and Hamard Gate on Qubit.
The Driver file will have the following code to execute SuperpositionState Test.
Code Sample : Driver C# code
using System;
using Microsoft.Quantum.Simulation.Core;
using Microsoft.Quantum.Simulation.Simulators;
namespace SuperpositionDriver
{
class Driver
{
static void Main(string[] args)
{
using (var qsim = new QuantumSimulator())
{
Result[] initials = new Result[] { Result.Zero, Result.One };
foreach (Result initial in initials)
{
var res = SuperpositionStateTest.Run(qsim, 1000, initial).Result;
var (numZeros, numOnes) = res;
System.Console.WriteLine(
$”Init:{initial,-4} 0s={numZeros,-4} 1s={numOnes,-4}”);
}
}
}
}
}
The number of times zero and one values come in the run of 1000 times is printed for superposition test. Quantum bit is halfway between 0 and 1 as shown statistically below in the output.
Init:Zero 0s=506 1s=494
Init:One 0s=497 1s=503

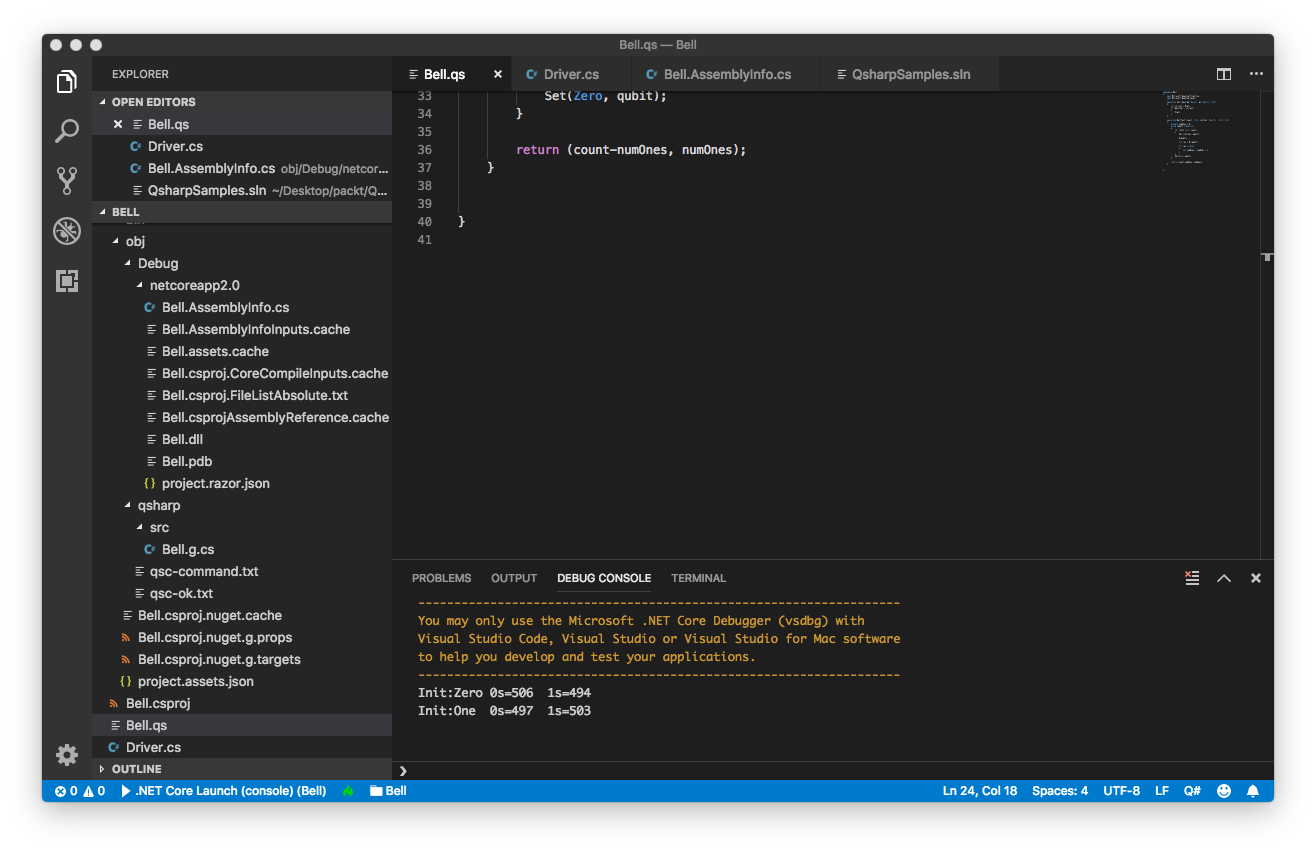

The screenshot of the output is attached below:
Operation StateTest takes parameters count and initial. The operation returns two values as a tuple of integer types. The operation loops the count number of times and measures one and zero states. The measurement occurs after invoking the set operation and Not Gate on Qubit. The code below shows the number of times zero and one values come in the run of 1000 times is printed.
using System;
using Microsoft.Quantum.Simulation.Core;
using Microsoft.Quantum.Simulation.Simulators;
namespace QuantumState
{
class Driver
{
static void Main(string[] args)
{
using (var qsim = new QuantumSimulator())
{
Result[] initials = new Result[] { Result.Zero, Result.One };
foreach (Result initial in initials)
{
var res = StateTest.Run(qsim, 1000, initial).Result;
var (numZeros, numOnes) = res;
System.Console.WriteLine(
$”Init:{initial,-4} 0s={numZeros,-4} 1s={numOnes,-4}”);
}
}
}
}
}
namespace QuantumState
{
open Microsoft.Quantum.Canon;
open Microsoft.Quantum.Primitive;
operation Set (desired: Result, q1: Qubit) : Unit
{
let current = M(q1);
if (desired != current)
{
X(q1);
}
}
check out the latest Q# version 0.9. This version has the features listed below:
check out Chemistry Library – Quantum Development Kit:
The chemistry library in the t Quantum Development Kit has quantum algorithms for real-world applications in the computational chemistry domain.
